MNS型低壓抽出式開關柜是根據我國電力發展的需要，吸收國際技術，參照產品制造技術，在設計制造上完全國產化的國內新產品，是工廠組裝式低壓開關柜裝置。下面來講講
MNS低壓抽屜柜電動機控制以及本身特點內容吧。

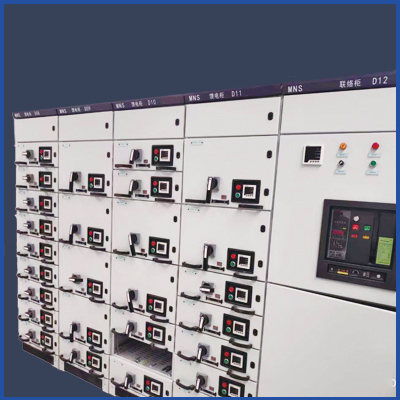

MNS low-voltage draw-out switchgear is a new domestic product completely localized in design and manufacture according to the needs of China's power development, absorbing international advanced technology and referring to product manufacturing technology. It is a factory-assembled low-voltage switchgear device. Let's talk about MNS low-voltage drawer cabinet motor control and its own characteristics.
低壓抽屜柜電動機控制
Low-voltage drawer cabinet motor control
1.分、合閘機構、主回路動、靜插件、控制回路二次插件；
1. Opening and closing mechanism, main circuit dynamic and static plug-in, control circuit secondary plug-in;
2、主回路：斷路器（空開）、接觸器、熱繼電器；
2. Main circuit: circuit breaker (air switch), contactor, thermal relay;
3、控制回路：熔斷器、中繼、電流互感器、電流表、電流變送器
3. Control circuit: fuse, relay, current transformer, ammeter, current transmitter
4、連接線纜
4. Connecting cable
主要零部件：
Main parts:
1、鍍鋅銅母排、絕緣子、電纜、線鼻
1. Galvanized copper busbar, insulator, cable, wire nose
2、塑殼式斷路器，空氣開關
2. Molded case circuit breaker, air switch
3、雙電源控制器，雙電源控制與保護開關
3. Dual power controller, dual power control and protection switch
4、spd浪涌保護器
4. Spd surge protector
5、電壓表、電流表、功率因數表、多功能液晶顯示表、電能表、指示燈、按鈕
5. Voltmeter, ammeter, power factor meter, multi-function LCD display meter, electric energy meter, indicator light, button
6、低壓抽屜
6. Low voltage drawer
7、電流互感器、熔斷器
7. Current transformer and fuse
8、三項轉換開關
8. Three-phase transfer switch
MNS低壓抽屜柜特點：
Features of MNS low-voltage drawer cabinet:
1、設計緊湊：以較小的空間容納較多的功能單元；
1. Compact design: accommodate more functional units in a smaller space;
2、結構件通用性強、組裝靈活，以E=25mm為模數，結構及抽出式單元可以任意組合，以滿足系統設計的需要；
2. The structural parts have strong versatility and flexible assembly. With E=25mm as the module, the structure and draw-out unit can be combined arbitrarily to meet the needs of system design;
3、母線用高強度阻燃型、高絕緣強度的塑料功能板保護，具有抗故障電弧性能，使運行維修可靠；
3. The bus is protected by high-strength flame-retardant plastic functional plate with high insulation strength, which has the anti-fault arc performance, making the operation and maintenance safe and reliable;
4、各種大小抽屜的機械聯鎖機構符合標準規定，有連鎖、試驗、分離三個明顯的位置，可靠；
4. The mechanical interlocking mechanism of various sizes of drawers conforms to the standard, with three obvious positions of interlocking, test and separation, safe and reliable;
5、采用高強度阻燃型工程燃料，有效加強了防護性能；柜體可按工作環境的不同要求選用相應的防護等級；
5. The use of high-strength flame-retardant engineering fuel effectively strengthens the protection and safety performance; The cabinet can be selected according to the different requirements of the working environment;
6、設備運行連續性和可靠性高。
6. High equipment operation continuity and reliability.
MNS low-voltage drawer cabinet motor control and its own characteristics have been explained. If you have any doubts or needs about this, please come to our website http://m.serie-d.com Consult and see!
